Reverse Engineering Process

With our new coordinate measuring machine (CMM) from FARO^® Technologies Inc.
we can provide you with completely dimensioned 2D drawings and 3D models
in your choice of file formats:

2D: .slddrw, AutoCad.dwg, dxf or .jpg, .pdf, .tif...
3D: .sldprt, .iges, parasolid, ProE.prt, STEP, ACIS

If you would like us to reverse engineer, gears, shafts, or other machine parts please
call 800-523-2576,
or
send your parts to:

Rush Gears inc.
Attn: Reverse Engineering
550 Virginia Drive
Fort Washington, PA 19034 Print a shipping label.

How it works:

We will take your part...

Faro arm

Measure it with our FARO^® Platinum Arm^TM...

Faro Arm

...and create a fully dimensioned drawing using
the latest version of Solidworks.^®

You receive the information in the form of
drawing files and solid model files in many formats.

2D drawing

- 2D Manufacturing Drawing -

Plus, if you request it, we will have your material tested
for hardness and composition (requires some destruction
of your material). Call for pricing.

Engineers working on a bevel gear

Engineers Stewart & Rich reverse engineer a bevel gear.
The portability of the Faro Arm allows us to measure
parts just about anywhere in the building.

Please call 800-523-2576 to receive
a free quotation.

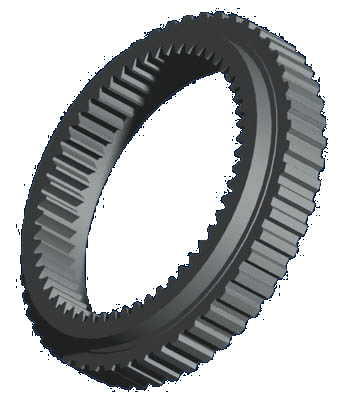

3d solid model

- 3D Model -
